When it comes to scaling up a poultry operation, one of the most critical decisions is choosing the right housing system. For farmers aiming to raise 20,000 chickens efficiently and sustainably, the H-Type chicken cage system has become a go-to solution — especially those engineered by Livi Machinery from Zhengzhou, China. With over a decade of experience in designing and manufacturing high-performance poultry equipment, Livi specializes in delivering turnkey solutions that maximize space, improve bird welfare, and boost egg or meat production. In this article, we’ll dive into why the H-Type cage system is ideal for large-scale operations, how Livi’s version stands out, and what you need to consider before installing one for your 20,000-bird flock.

Why the H-Type Design Is Perfect for Medium to Large Farms

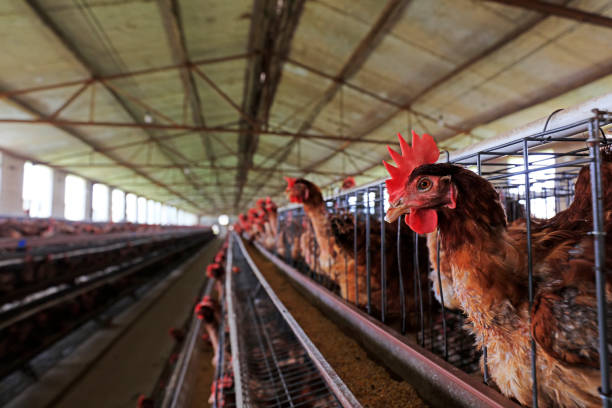

The H-Type cage system, also known as the “H-Shaped” or “double-decker aisle” design, gets its name from the structural layout that looks like the letter “H” when viewed from above. This smart configuration features two rows of multi-tier cages facing each other, with a central feeding and waste collection aisle running down the middle. Unlike traditional single-row systems, the H-Type makes far better use of available barn space, especially in long, narrow houses commonly found in modern poultry farms.

For a farm targeting 20,000 laying hens or broilers, this setup can support up to four or even five tiers high, depending on ceiling height and ventilation setup. Each module holds hundreds of birds, and multiple modules are lined up along the length of the house. The layout allows workers easy access for monitoring, egg collection, feeding checks, and maintenance without needing to walk through bird areas — which promotes biosecurity and reduces stress on the flock.

Another big advantage of the H-Type is automation compatibility. At this scale, manual labor simply isn’t efficient. Livi’s H-Type systems come pre-integrated with automatic feeding lines, nipple drinking systems, egg belt conveyors, manure removal belts, and climate control sensors. These features not only save labor but also ensure consistent delivery of food, water, and optimal growing conditions across all levels — something hard to achieve with open-floor systems or simpler cage designs.

And let’s talk hygiene. One of the biggest challenges in managing tens of thousands of birds is managing droppings and ammonia buildup. Livi’s H-Type units include sloped manure belts between layers, which help dry out waste quickly and reduce odor and pathogens. Regular automated scrapes move manure outside the building into composting pits or trucks, keeping the environment cleaner and healthier for both birds and staff.

Smart Features That Make Livi’s H-Type Stand Out

What sets Livi Machinery apart isn’t just that they build standard H-Type cages — it’s how they’ve improved every component based on real-world feedback from farms across Asia, Africa, South America, and Eastern Europe. Their H-Type system for 20,000 chickens isn’t an off-the-shelf product; it’s a customizable solution tailored to your farm size, power availability, climate, and target output.

Let’s start with materials. Many cheaper systems use thin galvanized steel that warps or rusts within a few years. Livi uses heavy-duty low-carbon steel with a triple-layer hot-dip galvanization process, making their cages corrosion-resistant and built to last over 15 years — even under humid tropical conditions. Wire spacing is carefully calculated: tight enough to prevent leg injuries but wide enough for droppings to fall through easily.

Then there’s the intelligent feeding system. Instead of relying on gravity-fed tubes that often clog or deliver uneven amounts, Livi integrates chain-driven feed lines controlled by timers or even IoT platforms. You can schedule feeding times, adjust portions remotely via smartphone, and get alerts if blockages occur. This level of precision prevents overfeeding (saving costs) while ensuring no bird goes hungry.

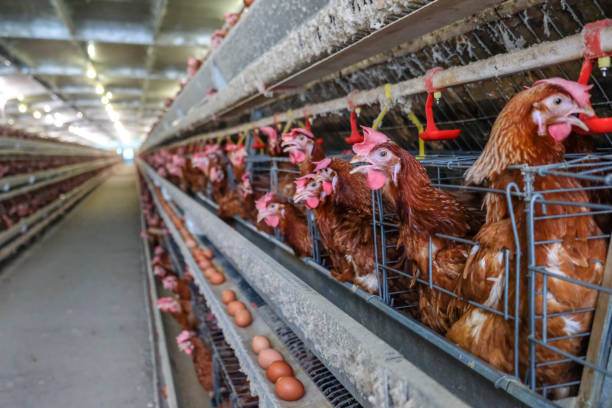

Egg collection is another highlight. On a daily basis, eggs roll gently from nesting zones onto PVC-coated egg belts that slowly transport them to a central collection table at one end of the house. Because the system runs automatically, eggs spend less time sitting in cages where they could be pecked or broken. Workers collect clean, intact eggs with minimal effort, improving quality and reducing post-harvest losses.

Ventilation and environmental management are equally crucial. Livi works closely with clients during the planning phase to integrate their cages with tunnel ventilation fans, cooling pads, fogging systems, and temperature/humidity monitors. Their engineers recommend spacing, airflow patterns, and roof insulation types based on local weather data — not guesswork. This attention to detail keeps birds comfortable year-round, which directly translates to higher productivity and lower mortality rates.

And for farms going green? Some Livi H-Type setups now offer solar-powered controls and energy-efficient motors, reducing dependency on unstable grids and cutting operational costs long-term.

Planning Your 20,000-Chicken Setup: Space, Budget & Support

Before placing an order, it’s essential to understand the space requirements and infrastructure needed. A typical H-Type system for 20,000 hens requires about 3,000 to 4,000 square meters of shed space, depending on density and tier number. The building should have strong foundations, proper side and end walls for wind protection, and sufficient ceiling clearance (at least 3 meters). Our team at Livi offers free site assessment services — just share your land dimensions, photos, and goals, and we’ll send a layout plan showing where cages, feed silos, manure storage, and workstations should go.

Budget-wise, most customers invest between $80,000 and $120,000 for a fully equipped system with automation, depending on customization level. While this may seem significant upfront, the return on investment becomes clear within 12–18 months thanks to higher survival rates, lower labor costs, and increased egg yield. Plus, unlike imported European brands, Livi delivers faster shipping from Zhengzhou (often within 20–30 days), avoids customs delays through FOB/FCA terms, and offers flexible payment models including installment plans for qualified buyers.

Installation support is another area where Livi shines. We don’t just ship containers overseas — our technicians can travel to your location to supervise assembly, train your team on daily operations, preventive maintenance, and troubleshooting. Even after installation, you’ll get continued support via WhatsApp, Zoom, or email. Whether you’re dealing with a jammed egg belt or want to upgrade your monitoring software, we’re here to help.

Many of our clients start with one house for 20,000 birds and then expand to multiple units once they see results. We make expansion seamless by ensuring future modules are compatible with existing ones — same wire gauge, belt widths, and control panels. This modularity gives farmers confidence to grow step by step without replacing entire systems.

Start Building a Smarter Poultry Farm Today

If you’re serious about raising 20,000 chickens efficiently, cleanly, and profitably, the H-Type chicken cage system from Livi Machinery could be exactly what your farm needs. It combines space-saving design, advanced automation, durable construction, and expert support into one powerful solution. But more than that, it represents a shift toward smarter, data-driven farming that protects your birds, your profits, and your peace of mind.

We’ve helped hundreds of farmers transition from outdated systems to modern, scalable operations — and we’d love to do the same for you. If you’re ready to take the next step, simply reach out with your farm details. Tell us your location, current challenges, and production goals. We’ll respond within 24 hours with a personalized proposal, 3D layout, and transparent pricing. Don’t build blind — partner with a manufacturer who understands your vision.

Get in touch now and let’s turn your dream of a high-yield poultry farm into reality.

Frequently Asked Questions

What exactly is an H-Type chicken cage?

An H-Type cage is a multi-tier poultry housing system arranged in two back-to-back rows, forming an “H” shape when seen from above. It includes automated feeding, drinking, egg collection, and manure removal features, designed for medium to large farms.

How many chickens fit in an H-Type system for 20,000 birds?

The full system is configured to comfortably house 20,000 laying hens or broiler breeders, using four to five vertical tiers depending on shed height and bird type.

Can the system work without electricity?

While core functions like feeding and manure belts require power, backup options like generator hookups or solar kits can keep the system running during outages. Manual override modes are also available.

Is installation included in the price?

We provide detailed assembly instructions and video guides for self-installation. Alternatively, our engineers can travel to your site for hands-on supervision at an additional cost.

Does Livi offer spare parts and repairs?

Yes. We keep common replacement parts — such as rollers, belts, and motor components — in stock and can ship them worldwide within days. Our team also supports remote diagnostics.

Can I customize cage size or materials?

Absolutely. Depending on your birds’ breed and growth stage, we can adjust mesh size, tray depth, perches, and even paint coatings. Material upgrades like extra-thick galvanization are also possible.

How does the egg collection system prevent breakage?

Eggs roll gently from slanted nests onto soft rubber or PVC-coated belts moving at slow speed. Shock absorbers and edge guards minimize impact, ensuring over 99% of eggs arrive crack-free.

Do these cages meet international standards?

Livi’s H-Type systems comply with ISO 9001 quality standards and follow guidelines set by major poultry associations regarding bird density, welfare, and ventilation.

How often should I clean the cages?

With automatic manure belts, deep cleaning is needed only between flocks. Routine checks and wiping of feeders/drinking lines should happen weekly to maintain hygiene.

Can I automate climate control with this system?

Yes. We can connect your fans, heaters, and misters to a central control panel that monitors temperature and humidity in real-time, adjusting settings automatically for ideal conditions.
